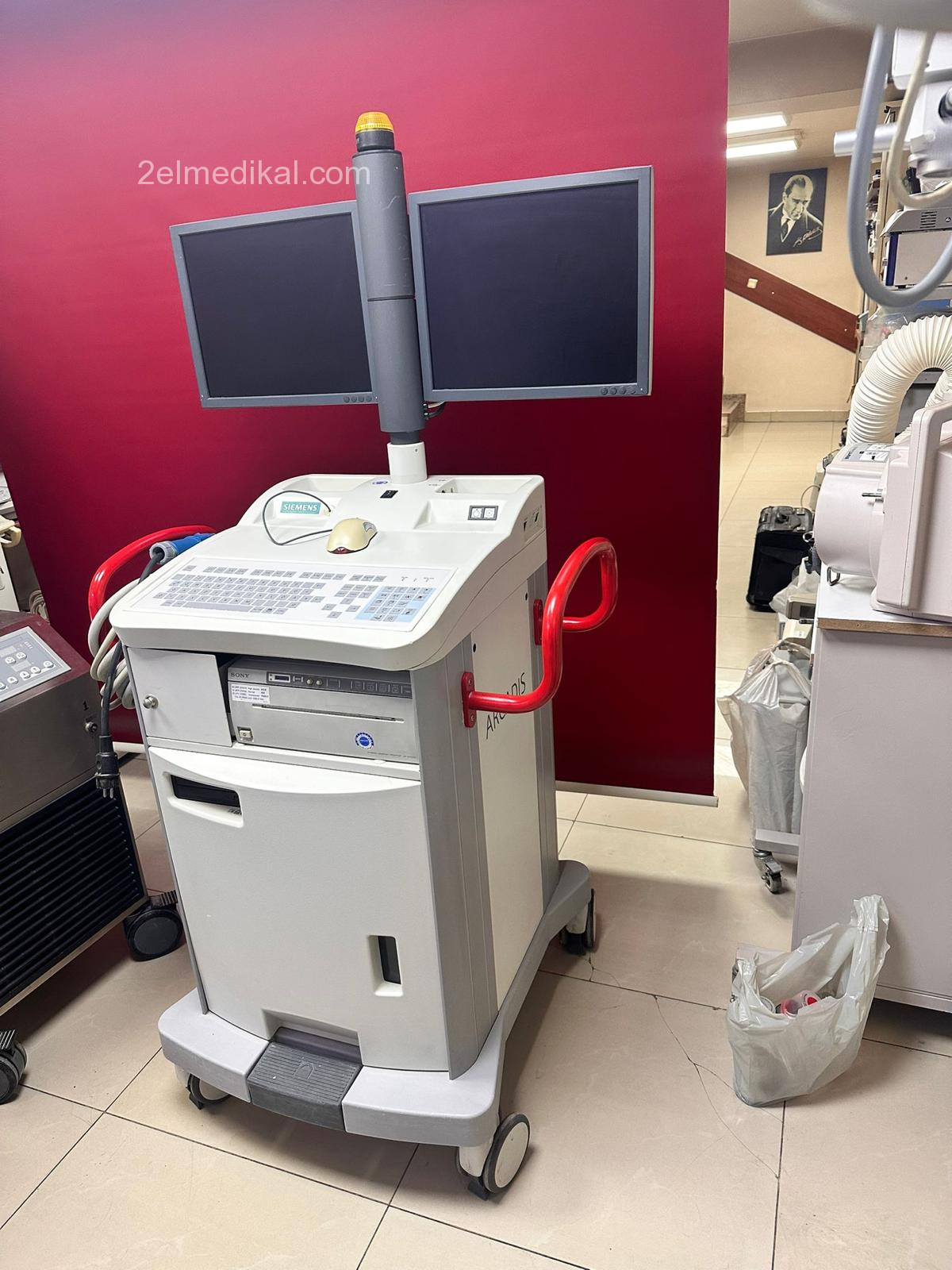

Siemens Arcadis For Sale

Siemens Arcadis
Terms of delivery: Pickup from the city Istanbul Turkey.
Price: 26.000 EURO (The price does not include the cost of the road and other expenses.)
📱 Whatsapp +905462792303

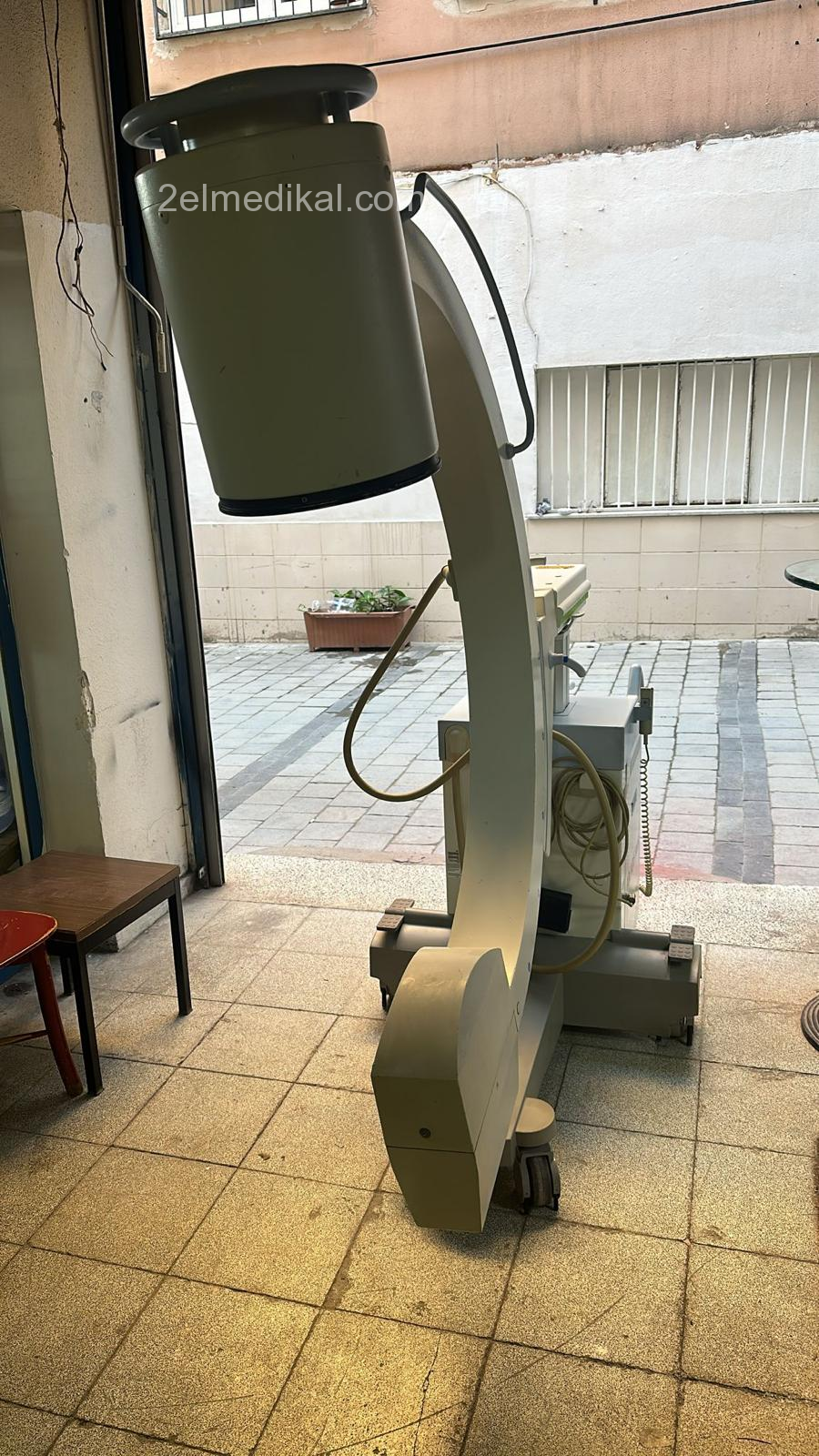

C-Arm

• Orbital Movement: 132° (- 42° to + 90°)
• Angulation: ± 190°
• Horizontal Movement: 20 cm (7.9”)
• Immersion Depth: 73 cm (28.7”)
• Swivel Range: ± 1:0°
• Vertical Travel: 38 cm (15”), motorized
• Source-I.I. Distance: 100 cm (39.4”)
• Free Space: 78 cm (30.7”)

X-Ray Generator / Tube Unit

POWERPHOS High-Frequency Generator

• Power Output: 15 kW
• Max. Pulsed Output: 25 kW
• Inverter Control Frequency: 15 kHz to 35 kHz
• kV Range: 40 kV to 125 kV
• Digital Radiography: up to 250 mA
• Fluoroscopy: 0.2 mA to 15.2 mA (max. 1000 watts)
• Power Mode: enables temporary max. output in continuous fluoroscopy
• Pulsed Fluoroscopy: up to 67 mA
• Pulse Rate: up to 8 p/s, up to 15 p/s
• DCM* (Digital Cine Mode): up to 250 mA
• Minimum Pulse Width: 7 ms
• Pulse Rate: up to 30 p/s
• Heat Storage Capacity of POWERPHOS Housing: 1,900,000 J, 2,565,000 HU

Single Tank WIth Dual-Focus Rotating-Anode Tube

• Focal Spot Nominal Value: 0.3 / 0.5
• Nominal Voltage: 125 kV
• Heat Storage Capacity of Anode: 200,000 J, 270,000 HU
• Optical Anode Angle: 10°
• Inherent Filtration: = 2.5 mm Al; 0.1 mm Cu
• Anode Drive: up to 10,800 RPM

Collimator System

• Iris Diaphragm: for concentric, radiation-free collimation
• Semi-Transparent Slot Diaphragm: for symmetric, radiation-free collimation, with unlimited rotation

Operating Data

• Power requirements: 100 V, 110 V, 120 V, 127 V, 200 V, 230 V, 240 V (± 10%); 50/60 Hz (± 1 Hz)
• Device fusing (internal): 100 V to 127 V 20 A slow-blow fuse 200 V to 240 V 15 A slow-blow fuse

Environmental Conditions (Operating)

• Temperature Range: + 15°C to + 35°C
• Relative Humidity: 15% to 75%, non-condensing
• Barometric Pressure: 700 hPa to 1060 hPaM
